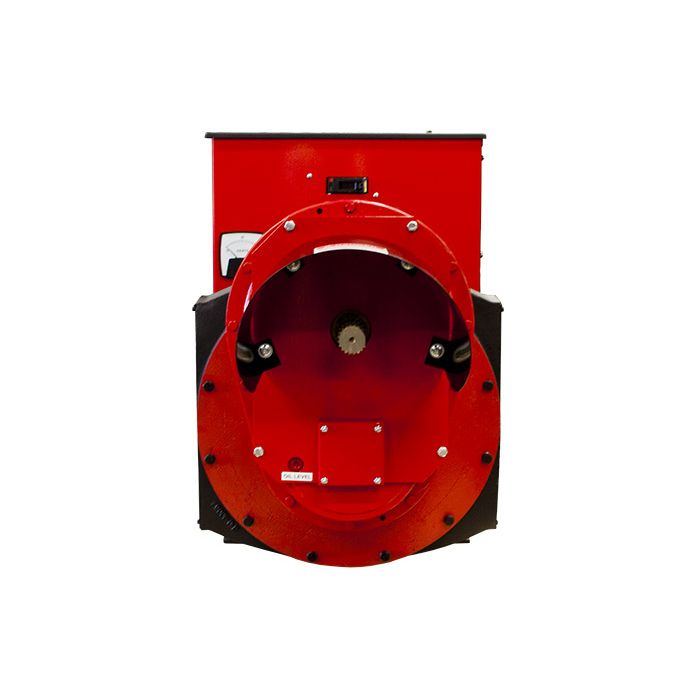

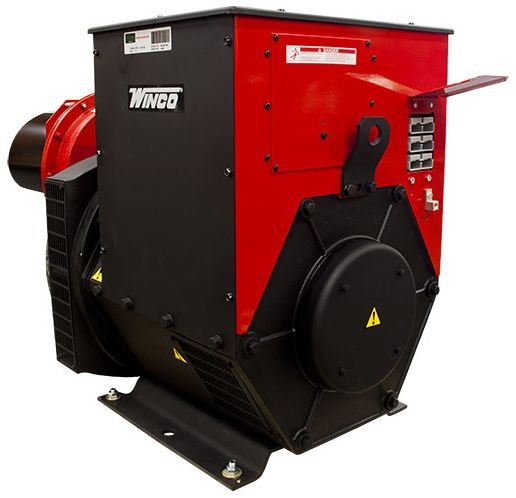

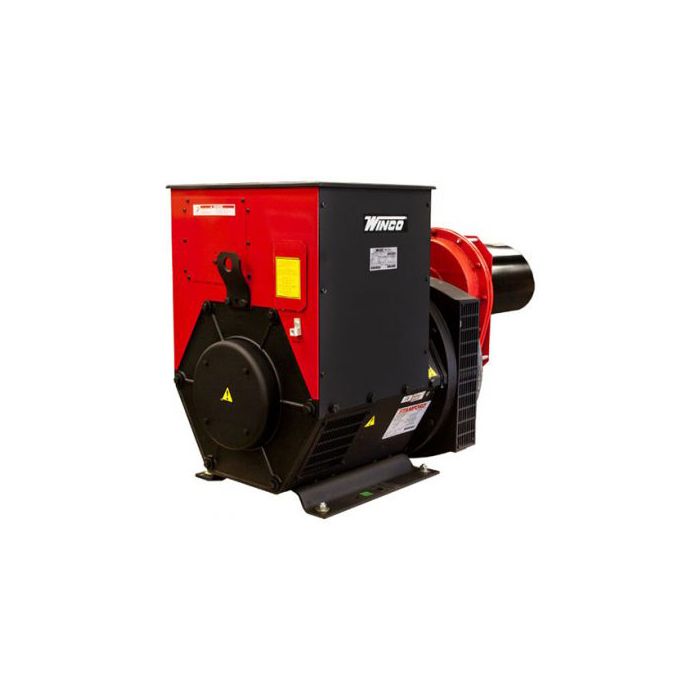

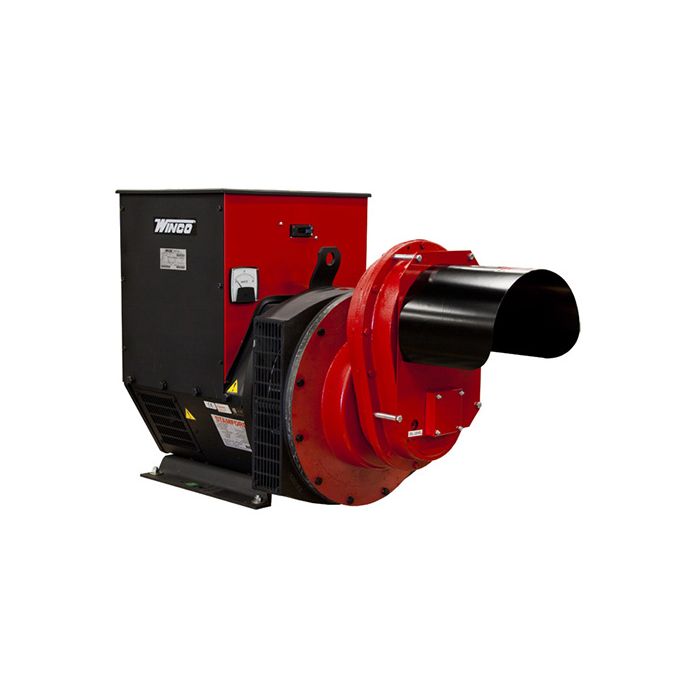

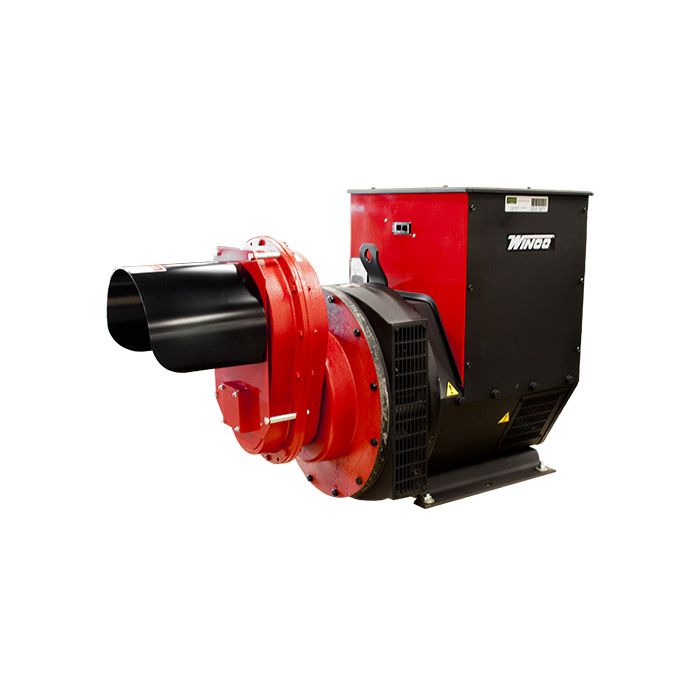

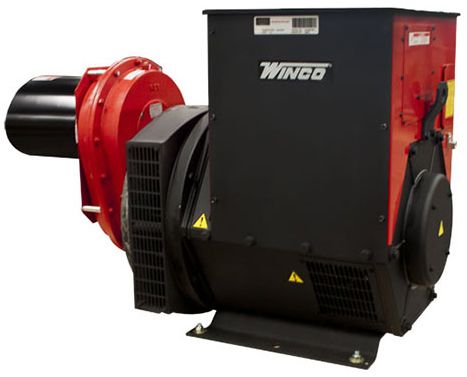

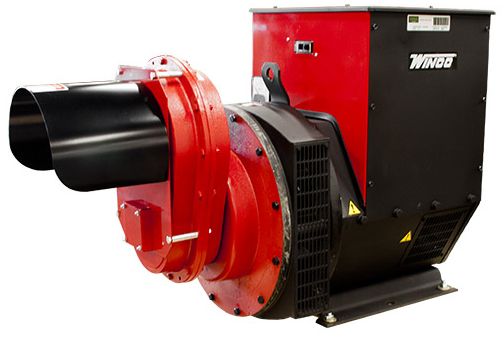

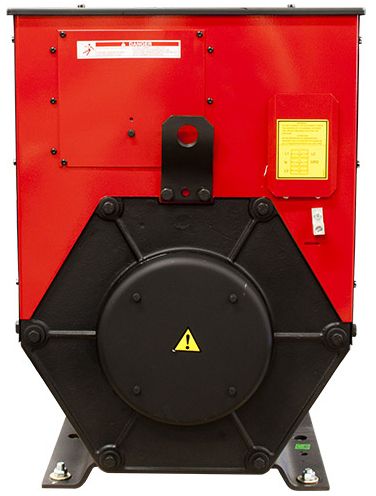

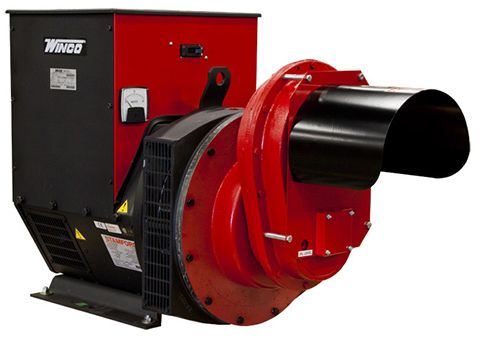

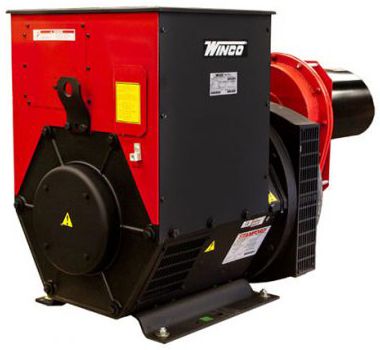

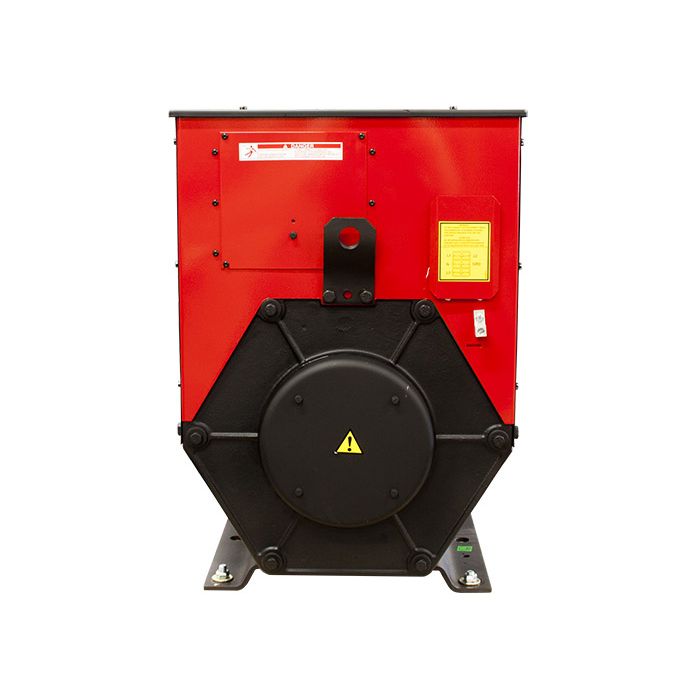

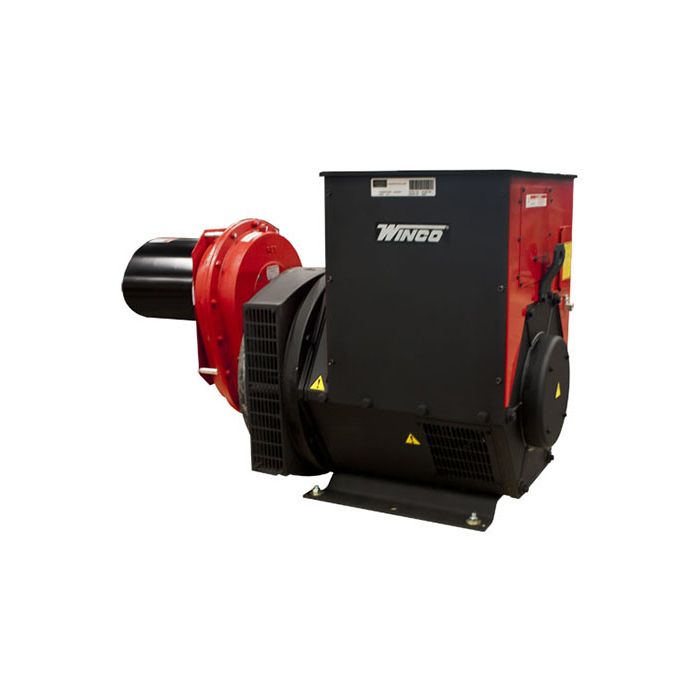

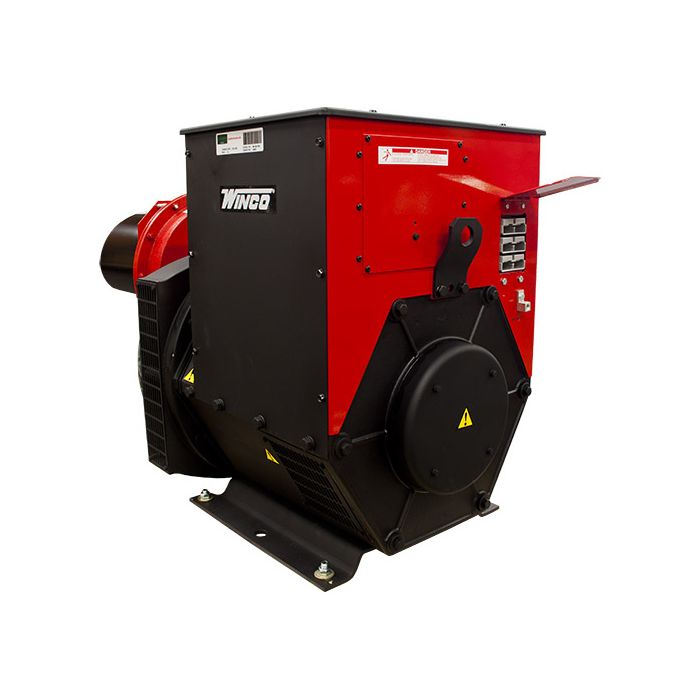

Winco Tractor Driven PTO Generator – W150PTOS-3, 150 kW, 1000 RPM

• The Winco W150FPTOS provides a robust 150,000 Watts of power for your agricultural operations
• Provides single phase 120 and 240 Volt power with 625 rated Amps with a 600 Amp main line circuit breaker
• Requires a 290 HP tractor driven PTO at an input speed of 1000 RPM and connects to the t-bar by a 1 3/4 inch 20 splined tumbling bar PTO shaft.  PTO shaft sold separately.
• Motor starting capacity of 60 HP
• Optional and convenient PTO mobility trailer sold separately
• Includes easy 20 Amp/120 Volt duplex receptacle, 50 Amp/240 Volt receptacle, and a full power potential with circuit breaker connection
• Industrial grade Stamford 2-bearing brushless alternator includes 100% copper windings, providing total harmonic distortion of <5% and AS440 automatic voltage regulation of +/- 1%

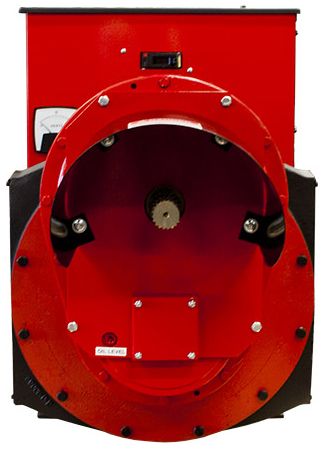

• Robustly manufactured cast iron gear case with protective PTO shield along with sealed maintenance free bearings provides protection and ease of operation for your equipment and operators in adverse and demanding farming applications
• Farmer friendly large generator mounted frequency meter allows for adjustments on the fly from the seat of the tractor
• Convenience Receptacle Package Available:
  • NEMA 5-20R (120 Volt, 1-Phase)
  • NEMA 6-50R (240 Volt, 1-Phase)
  • Terminal Lug Connections (Hard Wire Connection To Circuit Breaker)
• 3 Year commercial warranty in standby applications of 50 hours per month or less.

The pride of Minnesota and an industry leading manufacturer of tractor driven PTO generators for generations dating back to 1942, Winco is at the top of the 150 kW PTO generator market with the W150FPTOS.  This single phase 120 and 240 Volt 150,000 Watt PTO generator supplies reassuring backup power and portable power to America’s farming communities in dairy, cattle, chicken, hog, crop, home standby, or other agriculture based operations.  Supplying a maximum 625 Amps with a 600 Amp mainline Square D circuit breaker, the generator provides clean, consistent, and safe electricity to your confinements, outbuildings, barns, drying operations, shop and even your home due to the sophisticated Stamford 2-bearing generator that includes a brushless alternator and 100% copper windings.  Sophistication is met with convenience with the 120 Volt operations through a duplex receptacle, a 50 Amp/240 Volt plug, and circuit breaker connection for full power.  The operator of the generator will have a convenience volt meter to reference from the seat of the tractor to adjust on the fly as needed.  PTO generator affordability is no reason to compromise quality. Winco has found it best to include a robust cast-iron gear case, protective PTO shield for safe and protected operation, and maintenance free bearings.  Winco has partnered with farmers for years as they battle not only the financial aspects of their intense operations, but also the physical weather elements and the associated unpredictable power grids.  Winco’s PTO generators lend their hand to secure the bottom line when farm operations must proceed with or without main power grid electricity.  Even the most seasoned of farmers have found a reasonably modest investment in a reliable American brand Winco PTO generator for their backup standby generator power needs or convenient portable power around their operations has saved them millions of dollars of the life of the generator and their farming career.
